IRC FOCUS-B-G-MB-HW : Controller for Battery Assembly Tools
Based on the Power Focus 4000 controller, the IRC Focus was designed to run Tensor STB battery assembly tools. With its built-in Bluetooth adapter, it eliminates the need for an external communication kit. It also participates in controlling the station or line segment. The IRC Focus and associated software packages provide easy-to-understand information for everyone, from operators to plant managers. The IRC Focus is based on standard hardware and software components which, when combined, will fulfill all demands, from the most basic stand-alone installation to full integration into the factory network. The modules fit together using the “plug-and-play” concept. Assembly process control and quality assurance is made easy by advanced control functions. On receipt of assembly information, the IRC Focus automatically selects the correct tightening sequence and parameters. The operator is guided through the process, avoiding mistakes that can result in costly quality problems. Advanced process control and monitoring functions make it easy to view and collect data using the Internet infrastructure.
Features & Benefits :
• Supports software keys (RBU, rapid backup unit) Silver and Gold to run a battery assembly tool functionality upgrade. This eliminates the need to replace hardware, thus reducing capital expenditures.
• ModBusPlus support for robust industrial communication.
• External USB port for simple and fast communication with programming software ToolsTalk PF
• Built-in Bluetooth module eliminating the need for external communication kit
• Graph version gives you full stand-alone programming possibilities featuring a color display and a full keyboard. When networked, the Graph can function as a programming terminal for other Power Focus units as well as providing excellent operator feedback with diverse visualization options.
สอบถามรายละเอียดสินค้า หรือ ขอแคตตาล็อกสินค้า
Further detail of products required, pls feel free to contact us.
IRC FOCUS-B-G-MB-HW : Controller for Battery Assembly Tools
Power Focus 4002-G-EIP-HW : Controller for Electrical Assembly Tools
The Power Focus 4002 controls tools Tensor SL. With its built-in functions, it also participates in controlling the station or line segment. The Power Focus and associated software packages provide easy-to-understand information for everyone, from operators to plant managers. The Power Focus is based on standard hardware and software components which, when combined, will fulfill all demands, from the most basic stand-alone installation to full integration into the factory network. The modules fit together using the “plug-and-play” concept. Assembly process control and quality assurance is made easy by advanced control functions. On receipt of assembly information, the Power Focus automatically selects the correct tightening sequence and parameters. The operator is guided through the process, avoiding mistakes that can result in costly quality problems. Power Focus is a modular range of controllers, with full flexibility, designed for applications ranging from single spindle hand-held operations to fixtured multiple nutrunnning systems. Advanced process control and monitoring functions make it easy to view and collect data using the Internet infrastructure.
Features & Benefits :
• Supports software key (RBU, rapid backup unit) Bronze, Silver, Gold to run an electrical assembly tool simplifying functionality upgrade. This eliminates the need to replace hardware reducing capital expenditures.
• External USB port for simple and fast communication to programming software ToolsTalk PF
• Compact version offers full functionality at a lower cost, but requires a PC with the ToolsTalk PF software for advanced process setup. An integrated 6 key keyboard and LED display give the possibility for basic programming and torque and angle visualization for operator feedback.
• Ethernet/IP support for robust industrial communication.
สอบถามรายละเอียดสินค้า หรือ ขอแคตตาล็อกสินค้า
Further detail of products required, pls feel free to contact us.
Power Focus 4002-G-EIP-HW : Controller for Electrical Assembly Tools

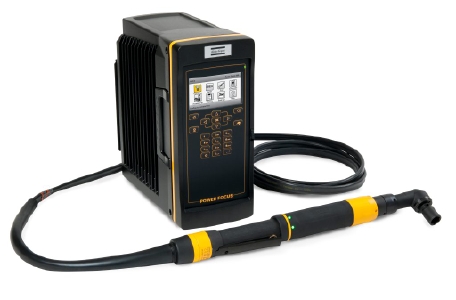

Power Focus 600: Quality critical assembly, handheld, electric tightening controller
The Power Focus 600 controller provides the power to the Tensor ES tools. It comes in one single hardware version regardless of which tool model or functionality level is used. Its powerful industrial design gives a reliable process that will speed up your tightening operations. It is the perfect choice for quality critical assembly and a great entry level product to electric tightening.
Features & Benefits :
• Simple to setup. Setup and run a new system from the box in minutes. Computer software no longer required since you browse in using a web HMI
• Easy to operate. Hight definition color screen. Easy-to-use keypad. Clear operator feedback on screen.
• Maximum uptime. Same controller hardware regardless of tool model. Upgrade the unit in a few seconds. Smart software management.
สอบถามรายละเอียดสินค้า หรือ ขอแคตตาล็อกสินค้า
Further detail of products required, pls feel free to contact us.
Power Focus 600 : Quality critical assembly, handheld, electric tightening controller
